ZS二位二通微型系列直动式电磁阀<常闭型>

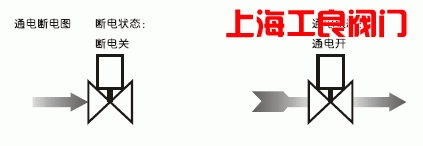

二位二通常闭型电磁阀,断电关闭,通电打开;产品为系列化生产,体积小,流量大,适用范围广
阀体材质为:铜,SS304不锈钢,SS316不锈钢(定)
环境温度: 0℃～65℃ 介质温度: 0℃～120℃
安装:按阀上所标流向箭头,可任意安装;为增强使用寿命,最好线圈向上,水平安装.
电压:AC24V/110V/220V/230V/240V 50/60HZ DC24V/12V ±10%允许波动.可选配德国NASS线圈
密封件:可采用NBR、VITON、EPDM等多种,以适应不同流体的开关控制.

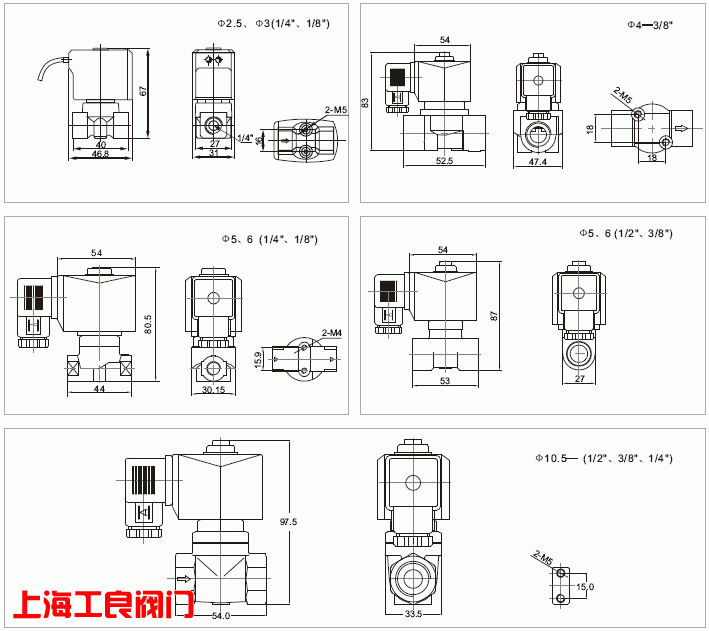

型号规格表
| 接管口径 | 流量通径mm | CV值 | 压力差（Kgf/cm2) | 最大温度℃ | 线圈配置 | 功率 | 线圈等级 | 订货型号规格以下表中 型号规格电压是220VAC |
重量KG | ||||||||
| 最小压力 | 最大工作压力 | VA | W | ||||||||||||||
| 空气瓦斯 | 水、热水液体 | 轻油≤20CST | AC220V | DC24V | 阀体材料 | ||||||||||||
| AC | DC | AC | DC | AC | DC | 锻铜 | 不锈钢SS304 | ||||||||||
|
1/8” 只配 |
2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 7 | 5 | 80 | N | 13 | 8.5 | B | ZS1NF02N1AC3 | ZS1NF02N4AC3 | 0.35 |
| 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 120 | N | 13 | 8.5 | B | ZS1NF02E1AC3 | ZS1NF02E4AC3 | 0.35 | |||
| 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 7 | 5 | 120 | N | 13 | 8.5 | B | ZS1NF02V1AC3 | ZS1NF02V4AC3 | 0.35 | |
| 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 5 | 4 | 80 | N | 13 | 8.5 | B | ZS1NF02N1AC3 | ZS1NF02N4AC3 | 0.35 | |
| 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 120 | N | 13 | 8.5 | B | ZS1NF02E1AC3 | ZS1NF02E4AC3 | 0.35 | |||
| 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 5 | 4 | 120 | N | 13 | 8.5 | B | ZS1NF02V1AC3 | ZS1NF02V4AC3 | 0.35 | |
| 1/8” | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 80 | D | 33 | 20 | F | ZS1DF02N1A05 | ZS1DF02N4A05 | 0.46 |
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 120 | D | 33 | 20 | F | ZS1DF02E1A05 | ZS1DF02E4A05 | 0.46 | |||
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 120 |
D |
33 | 20 | F | ZS1DF02V1A05 | ZS1DF02V4A05 | 0.46 | |
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 80 | D | 33 | 20 | F | ZS1DF02N1A06 | ZS1DF02N4A06 | 0.46 | |
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 120 | D | 33 | 20 | F | ZS1DF02E1A06 | ZS1DF02E4A06 | 0.46 | |||
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 120 | D | 33 | 20 | F | ZS1DF02V1A06 | ZS1DF02V4A06 | 0.46 | |
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 80 | D | 33 | 20 | F | ZS1DF02N1AC8 | ZS1DF02N4AC8 | 0.45 | |
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | ZS1DF02E1AC8 | ZS1DF02E4AC8 | 0.45 | |||
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | ZS1DF02V1AC8 | ZS1DF02V4AC8 | 0.45 | |
| 1/4” 只配 N05型线圈 |
2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 7 | 5 | 80 | N | 13 | 20 | B | ZS1NF02N1BC3 | ZS1NF02N4BC3 | 0.34 |
| 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 120 | N | 13 | 8.5 | B | ZS1NF02E1BC3 | ZS1NF02E4BC3 | 0.34 | |||
| 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 7 | 5 | 120 | N | 13 | 8.5 | B | ZS1NF02V1BC3 | ZS1NF02V4BC3 | 0.34 | |
| 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 5 | 4 | 80 | N | 13 | 8.5 | B | ZS1NF02N1BC3 | ZS1NF02N4BC3 | 0.34 | |
| 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 120 | N | 13 | 8.5 | B | ZS1NF02E1BC3 | ZS1NF02E4BC3 | 0.34 | |||
| 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 5 | 4 | 120 | N | 13 | 8.5 | B | ZS1NF02V1BC3 | ZS1NF02V4BC3 | 0.34 | |
| 1/4” | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 80 | D | 33 | 8.5 | F | ZS1DF02N1B05 | ZS1DF02N4B05 | 0.45 |
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 120 | D | 33 | 20 | F | ZS1DF02E1B05 | ZS1DF02E4B05 | 0.45 | |||
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 120 | D | 33 | 20 | F | ZS1DF02V1B05 | ZS1DF02V4B05 | 0.45 | |
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 80 | D | 33 | 20 | F | ZS1DF02N1B06 | ZS1DF02N4B06 | 0.45 | |
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 120 | D | 33 | 20 | F | ZS1DF02E1B06 | ZS1DF02E4B06 | 0.45 | |||
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 120 | D | 33 | 20 | F | ZS1DF02V1B06 | ZS1DF02V4B06 | 0.45 | |
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 80 | D | 33 | 20 | F | ZS1DF02N1BC8 | ZS1DF02N4BC8 | 0.44 | |
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | ZS1DF02E1BC8 | ZS1DF02E4BC8 | 0.44 | |||
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | ZS1DF02V1BC8 | ZS1DF02V4BC8 | 0.44 | |
8）ZS二位二通微型系列直动式电磁阀〈常闭型〉
型号规格表
| 接管口径 | 流量通径mm | CV值 | 压力差（Kgf/cm2) | 最大温度℃ | 线圈配置 | 功率 | 线圈等级 | 订货型号规格以下表中 型号规格电压是220VAC |
重量KG | ||||||||
| 最小压力 | 最大工作压力 | VA | W | ||||||||||||||
| 空气瓦斯 | 水、热水液体 | 轻油≤20CST | AC220V | DC24V | 阀体材料 | ||||||||||||
| AC | DC | AC | DC | AC | DC | 锻铜 | 不锈钢SS304 | ||||||||||
| 3/8” | 4 | 0.6 | 0 | 8 | 5 | 8 | 5 | 5 | 5 | 80 | D | 33 | 20 | F | ZS1DF02N1C04 | ZS1DF02N4C04 | 0.6 |
| 4 | 0.6 | 0 | 8 | 5 | 8 | 5 | 120 | D | 33 | 20 | F | ZS1DF02E1C04 | ZS1DF02E4C04 | 0.6 | |||
| 4 | 0.6 | 0 | 8 | 5 | 8 | 5 | 5 | 5 | 120 | D | 33 | 20 | F | ZS1DF02V1C04 | ZS1DF02V4C04 | 0.6 | |
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 80 | D | 33 | 20 | F | ZS1DF02N1C05 | ZS1DF02N4C05 | 0.51 | |
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 120 | D | 33 | 20 | F | ZS1DF02E1C05 | ZS1DF02E4C05 | 0.51 | |||
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 120 | D | 33 | 20 | F | ZS1DF02V1C05 | ZS1DF02V4C05 | 0.51 | |
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 80 | D | 33 | 20 | F | ZS1DF02N1C06 | ZS1DF02N4C06 | 0.51 | |
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 120 | D | 33 | 20 | F | ZS1DF02E1C06 | ZS1DF02E4C06 | 0.51 | |||
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 120 |
D |
33 | 20 | F | ZS1DF02V1C06 | ZS1DF02V4C06 | 0.51 | |
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 80 | D | 33 | 20 | F | ZS1DF02N1CC8 | ZS1DF02N4CC8 | 0.49 | |
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | ZS1DF02E1CC8 | ZS1DF02E4CC8 | 0.49 | |||
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | ZS1DF02V1CC8 | ZS1DF02V4CC8 | 0.49 | |
| 10 | 1.6 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 0.4 | 0.2 | 80 | D | 33 | 20 | F | ZS1DF02N1C10 | 0.62 | ||
| 10 | 1.6 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 120 | D | 33 | 20 | F | ZS1DF02E1C10 | 0.62 | ||||
| 10 | 1.6 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 0.4 | 0.2 | 120 | D | 33 | 20 | F | ZS1DF02V1C10 | 0.62 | ||
| 1/2” | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 80 | D | 33 | 20 | F | ZS1DF02N1D05 | ZS1DF02N4D05 | 0.48 |
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 120 | D | 33 | 20 | F | ZS1DF02E1D05 | ZS1DF02E4D05 | 0.48 | |||
| 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 120 | D | 33 | 20 | F | ZS1DF02V1D05 | ZS1DF02V4D05 | 0.48 | |
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 80 | D | 33 | 20 | F | ZS1DF02N1D06 | ZS1DF02N4D06 | 0.48 | |
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 120 | D | 33 | 20 | F | ZS1DF02E1D06 | ZS1DF02E4D06 | 0.48 | |||
| 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 120 | D | 33 | 20 | F | ZS1DF02V1D06 | ZS1DF02V4D06 | 0.48 | |
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 80 | D | 33 | 20 | F | ZS1DF02N1DC8 | ZS1DF02N4DC8 | 0.46 | |
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | ZS1DF02E1DC8 | ZS1DF02E4DC8 | 0.46 | |||
| 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | ZS1DF02V1DC8 | ZS1DF02V4DC8 | 0.46 | |
| 10 | 1.65 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 0.4 | 0.2 | 80 | D | 33 | 20 | F | ZS1DF02N1D10 | 0.59 | ||
| 10 | 1.65 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 120 | D | 33 | 20 | F | ZS1DF02E1D10 | |||||
| 10 | 1.65 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 0.4 | 0.2 | 120 | D | 33 | 20 | F | ZS1DF02V1D10 | |||
