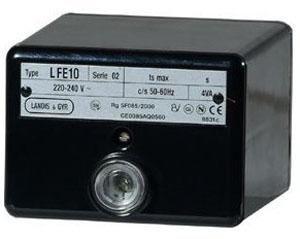

| LFE10系列火焰监测器
品牌：SIEMENS（西门子）
产地：德国
|
| 产品介绍 |
|
Flame safeguards for burners with intermittent operation. For safety reasons - self-test of flame supervision circuit, etc. - at least one controlled
Flame safeguards are used primarily in conjunction with the LEC1 burner control on the following applications:
-
Dual-supervision of burners: Supervision of the main flame or of the pilot and main flame by two identical or different types of flame detectors
-
Supervision of forced draught oil / gas burners: Supervision of the flame with different types of detectors, depending on the operating mode
-
Multi-flame supervision: Plants with several burners whose flames must be supervised individually by one or several detectors, whose startup and supervision, however, should or must be carried out centrally and simultaneously by only one burner control
-
The flame safeguards can also be used in connection with other types of burner controls provided the given combination and selected circuitry do not impair the burner control’s safety functions
-
The flame safeguards are also used as flame indication units in combustion plant with manual startup
shutdown is required every 24 hours. The LFE10 is suited for the supervision of gas flames and luminous or blue-burning oil flames in connection with UV detectors QRA... or a flame rectification probe. |
|
| 技术参数 |
| 主要参数 |
| 主电压 |
AC220V -15%...AC240V +10% |
| AC100V -15%...AC1100V +10% |
| 主频率 |
50...60Hz ±6% |
| 外部保险丝 |
10A |
| 功率 |
4.5VA |
| 端口额定电流 |
2A |
| 保护等级 |
IP40 |
| 重量（不含底座） |
305g |
|
|
| 环境条件 |
| 运输环境 |
IEC 60 721-3-2 |
| 内部条件 |
class 2K2 |
| 机械条件 |
class 2M2 |
| 温度范围 |
-20...+60ºC |
| 湿度 |
<95% |
| 运行环境 |
IEC 60 721-3-3 |
| 内部条件 |
class 3K5 |
| 机械条件 |
class 3M2 |
| 温度范围 |
-20...+60ºC |
| 湿度 |
<95% |
| 不得进水 |
|
|
