北京盛昌绿能科技有限公司

WNS 系列全自动燃油 （气）蒸汽锅炉主要参数表

Main technical specifications of WNS series fully-automatic oil -fired(gas-fired)steam boiler

单位及数据 Unit&Quantity

型 号 Model

项目 Item

WNS 0.5-1-Y (Q)

WNS 1.0-1-Y (Q)

WNS 1.5-1-Y (Q)

WNS 2-1-Y (Q)

WNS 3-1-Y (Q)

WNS 4-1.25-Y (Q)

WNS 5-1.25-Y (Q)

WNS 6-1.25-Y (Q)

WNS 8-1.25-Y (Q)

WNS 10-1.25-Y (Q)

额定蒸发量 Pated evaporation cpacity

t/h

0.5

1

1.5

2

3

4

5

6

8

10

额定蒸汽压力 Pated Steam pressure

MPa

1.00

1.00

1.00

1.00

1.00

1.25

1.25

1.25

1.25

1.25

额定蒸汽温度 Pated Steam temperature

℃

184

184

184

184

184

194

194

194

194

194

额定给水温度 Pated water-supply temperatuer

℃

20

20

20

20

20

20

20

105

105

105

总受热面积 Overall heating area

m ²

15.4

30.7

13.39

60.9

90.5

124.7

128.3

136.3

187

217.6

排烟温度 Exhaust smoke temperature

℃

230

230

230

230

230

220

220

220

220

220

燃气锅炉效率 Boiler efficiency

％

91.78

91.44

91.55

91.77

92.14

92.3

92.03

92.15

91.87

92.29

适用燃料 Fuel available

/

柴油、重油、天然气、液化气、城市煤气 Diesel oil 、 Heavy oil 、 Natural gas 、 Liquid gas City gas

林格曼黑度 Ringelman black

/

< 1 级 Classic 1

燃料耗量 Fuel consumprion

柴油 Diesel oil

kg/h

31.5

63

94

125.75

189

253

315

376

501

628

重油 Heavy oil

kg/h

33.02

66.99

98.89

131.72

197.55

163.12

328.55

394.26

525.57

680

天然气 Natural gas

Nm ³ /h

37.5

75

113

151

225

300

275

449

600

750

液化气 Liquid gas

Nm ³ /h

12.66

25.38

38.05

50.68

76.01

101.24

126.1

151.7

202.2

252.8

城市煤气 City gas

Nm ³ /h

75

150

226

302

450

600

750

898

1200

1500

燃烧器型号 Burner model

轻油 Light oil

/

L3Z

L5Z

L7Z

L8Z

L9Z

L10T

RL11

RL11

RL60/2

RL70/2

重油 Heavy oil

/

M3Z

M5Z

MS7Z

MS8Z

MS9Z

RMS10

RMS11

RMS11

RMS60/2

RMS70/2

气体 gas

/

G3

G5

G7

G8

G9

G10

G11

G11

G60/2

G70/2

燃烧器功率 Burner power

轻油 Light oil

kw

0.76

1.4

2.6

4

6.5

9

12

12

13.5

21

重油 Heavy oil

kw

0.76

1.4

2.6

4

6.5

9

12

12

13.5

21

4.5

4.5

13.2

13.2

13.2

13.2

22.4

22.4

22.4

22.4

气体 gas

kw

0.76

1.4

2.6

4

6.5

9

12

12

13.5

21

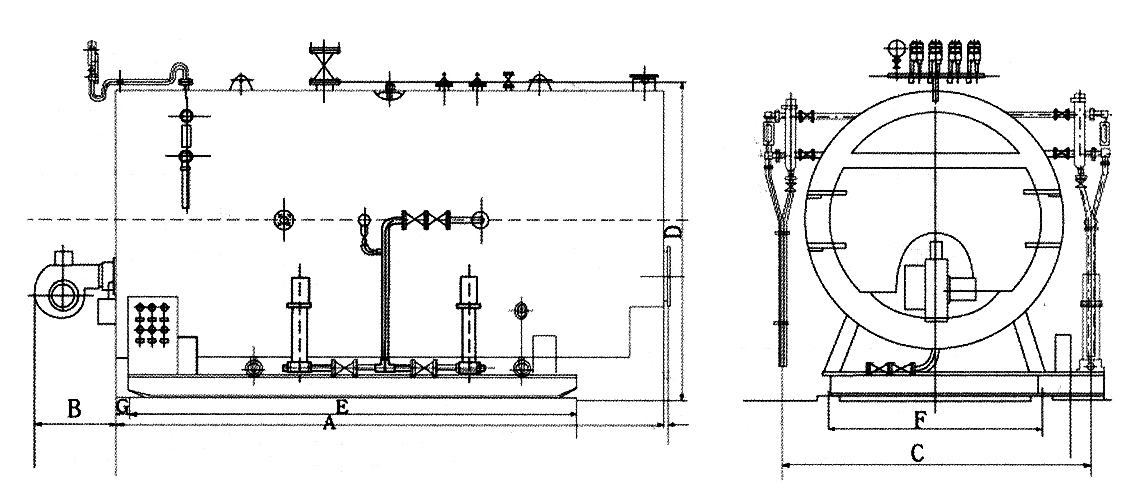

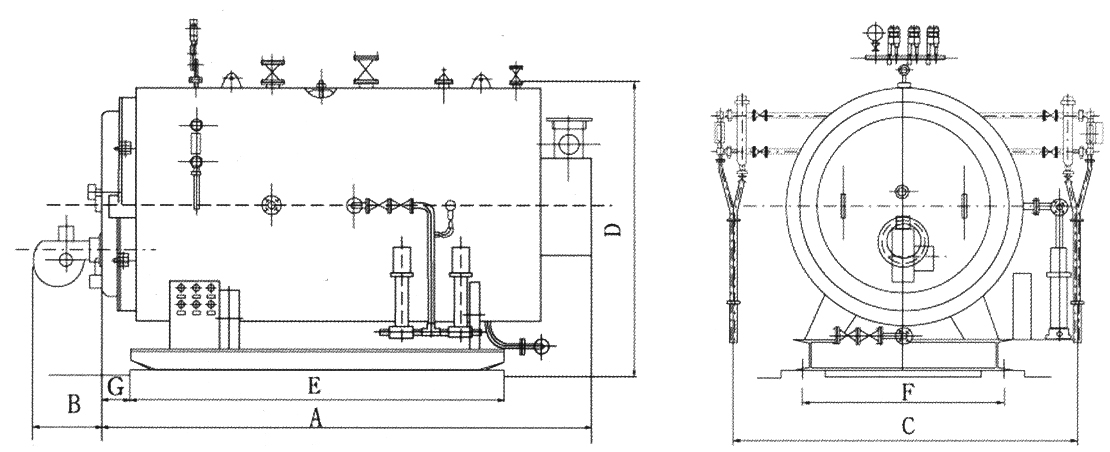

外形尺寸 Physical dimension

A

mm

3152

3440

3600

4320

4560

5052

5700

6030

5350

6030

B

mm

595

645

800

764

1010

970

1121

1121

1300

1320

C

mm

2200

2350

2700

2450

2600

2700

2800

2800

3000

3000

D

mm

1876

2234

2436

2434

2674

2684

2882

2882

3176

3176

E

mm

2132

2740

2900

3400

3560

4052

4700

5030

4230

4930

F

mm

1025

1500

1700

1500

1850

1850

1950

1950

2100

2150

G

mm

250

200

200

303

300

300

300

350

400

350

锅炉重量 Boiler weight

空炉 Empty boiler

T

2.7

4.87

5.5

7.32

10.1

12.86

14.7

15.3

18.6

21.3

满水 full boiler

T

3.7

6.4

7.6

12.8

16

22

24.7

25.5

32.5

38

使用电源 Service voltage

V

380V/50Hz

主蒸汽阀口径 (DN) Main steam valve caliber

mm

50

65

65

65

100

100

125

125

150

150

安全阀口径 (DN) Satety valve caliber

mm

50

50x2

50x2

50x2

50x2

50x2

80 50

80 50

80x2

80x2

排污阀口径 (DN) Emission valve caliber

mm

40

40

40

40

40

40

40

40

40

40

给水泵型号 Water-supply pump model

/

JGGC1

JGGC2

JGGC2

JGGC2

JGG**

JGG**

JGGC6

JGGC8

65DLG12

65DLG12

-112/13

-126/14

-126/14

4-136/17

-128/16

8-143/19

-140/15

-160/20

5-15x10

5-15x10

给水泵功率 Water-supply pump power

kw

2.2

2.2

2.2

3

3

4

5.5

7.5

11

11

给水泵入口口径 Pump entrance caliber

/

G3/2 ″

G3/2 ″

G3/2 ″

G3/2 ″

G3/2 ″

G3/2 ″

G2 ″

G2 ″

φ 65

φ 65

水泵入口口径 Water pump entrance caliber

mm

15

15

15

15

15

15

15

15

15

15

液位计泄水口口径 Liquidometer discharge orifice caliber

/

R3/8 ″

R1/2 ″

R1/2 ″

R1/2 ″

R1/2 ″

M30x1.5

M38x1.5

M38x1.5

M32x12

M32x12

烟囱口径 Chimney caliber

mm

φ 316

φ 316

φ 400

φ 400

φ 530

φ 530

φ 530

φ 530

φ 680

φ 680
